Technical Specifications
| Feature |
Details |
| Part Type |

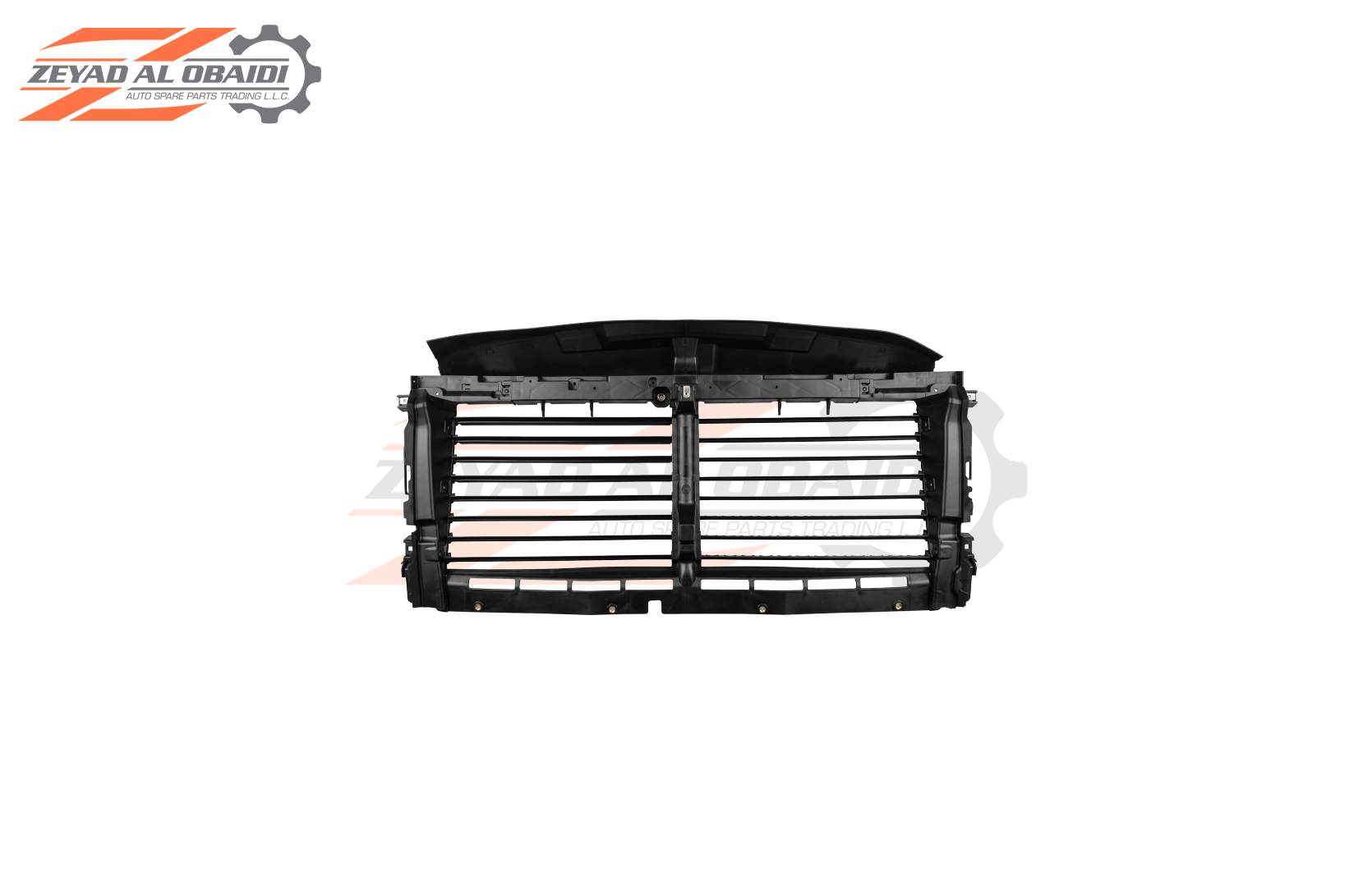

Active grille / front bumper shutter frame and louver assembly without actuator motor |
| Grade / Quality |
Aftermarket replacement part |
| Compatibility |
Selected GMC Sierra 1500 2022–2025 configurations matching the pictured frame, louver layout, actuator interface and mounting points |
| Model Years |
2022–2025 |
| Installation Position |
Front body, behind the grille / bumper opening and ahead of the cooling stack |
| Side |
Front center |
| Construction Material |
Molded plastic frame and shutter louvers |
| OEM Reference Numbers |
Complete OE assembly references (motor included): 85131842, 86586452, 85819959; aftermarket item shown is supplied without motor |
| Superseded References |
No direct supersession claim entered; verify VIN/RPO and original shutter configuration |
| Part Function |
Opens and closes airflow passages when operated by a compatible actuator and vehicle control system |
| Package Includes |
One shutter frame and louver assembly without motor, as stated in the product option; wiring, actuator, sensors and hardware are included only when shown |
| Fitment & Installation |
Transfer only a confirmed compatible actuator and connect it according to the original configuration; verify free louver travel, connector fit and diagnostic operation |
Technical Note: The available GM references identify complete shutter assemblies that include a motor, while this aftermarket item is explicitly supplied without a motor; therefore they are configuration references, not direct one-for-one OEM equivalents. Multiple complete assemblies are cataloged for 2022–2025 Sierra 1500. Confirm the original number, frame geometry, louver count, actuator interface, connector, RPO and VIN before ordering.
