Technical Specifications
| Feature |
Details |
| Part Type |

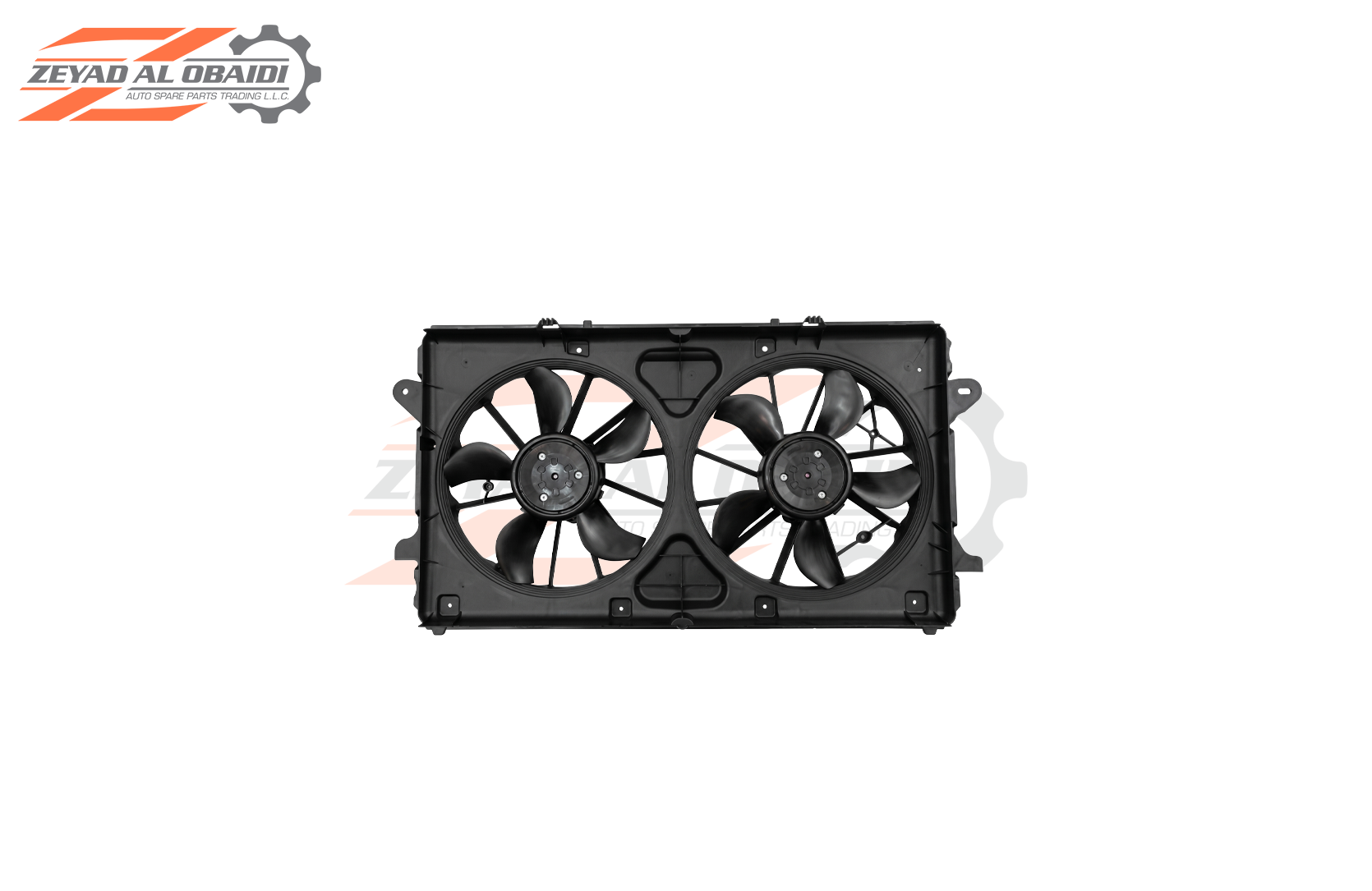

Dual engine cooling fan and shroud assembly |
| Grade / Quality |
Aftermarket replacement part |
| Compatibility |
Selected GMC Sierra 1500 2022–2025 configurations matching the original fan diameter, radiator dimensions, connectors, shroud mounting points and cooling package |
| Model Years |
2022–2025 |
| Installation Position |
Front engine compartment, directly behind the radiator and A/C condenser |
| Side |
Front center |
| OEM Reference Numbers |
VIN / engine / RPO verification required; no single confirmed Sierra complete fan-assembly reference entered |
| Superseded References |
No superseded service reference entered |
| Part Function |
Draws airflow through the radiator and A/C condenser to support engine and air-conditioning heat rejection |
| Package Includes |
The pictured dual-fan and shroud assembly; wiring, controllers, sensors and mounting hardware are included only when shown |
| Fitment & Installation |
Installs behind the radiator using compatible mounting points and electrical connectors; verify fan clearance, wiring and operating direction after installation |
Technical Note: Cooling-fan assemblies vary by engine, cooling package, electrical connector, control strategy and VIN. No single complete Sierra fan-assembly reference was confirmed from the available catalog evidence, so no OEM number has been inferred from appearance alone. Compare the original assembly label, dimensions, connectors and RPO equipment before ordering.
